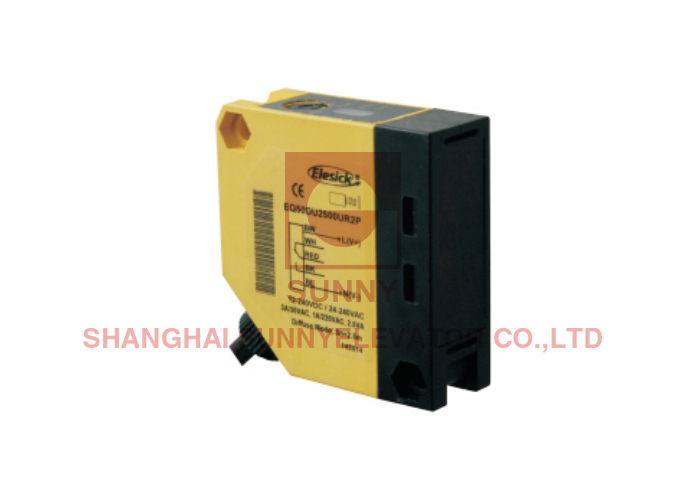

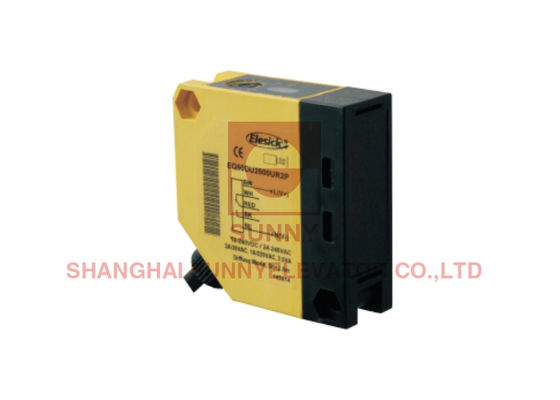

Escalator Entrance Detection Device Escalator Entrance Detection System

Escalator Entrance Detection Device Escalator Entrance Detection System
Escalator Entrance Detection Device Escalator Entrance Detection System

Großes Bild :  Escalator Entrance Detection Device Escalator Entrance Detection System

Produktdetails:
Herkunftsort: CHINA
Markenname: SUNNY
Zertifizierung: CE,ISO9001
Modellnummer: EQ50DD2500DK2P
Zahlung und Versand AGB:
Min Bestellmenge: 1 PCs
Preis: $3~6
Verpackung Informationen: Holzkiste
Lieferzeit: 7-15 Arbeitstage
Zahlungsbedingungen: Western Union,T/T,L/C,Paypal
Versorgungsmaterial-Fähigkeit: Monat mit 1000 PC

Escalator Entrance Detection Device Escalator Entrance Detection System

Beschreibung
Name: Rolltreppeneingangserkennungsvorrichtung Typ: Aufzugsteile
Verpackung: Standardverpackung Stromspannung: 10...30VDC
Produkt: Rolltreppeneingangserkennungsvorrichtung Modell: Rolltreppeneingangserkennungsvorrichtung
Ausgabe: PNP oder NPN Max. Last Strom: ≤ 100 mA
Ansprechzeit: ≤1ms Temperatur-Grenzen: -20 ~+70 ° ℃



Escalator Entrance Detection Device Escalator Entrance Detection System



Feature Description

Manufactured with a dedicated IC, this product offers stable performance. Built-in output short-circuit protection, surge protection, and overload protection circuits are also available. Multi-function programmable outputs (NPN/PNP/NO/NC) or relay outputs are available. Fast response time, long life, and high reliability are key features. IP65 (IEC) protection rating is also available.



Model

EQ50DD2500DK2P

EQ50UD2500UR2P

Power supply

10...30VDC

12-24VDC/24-240VAC

Riple

<10%

Sensitivity adjustment VR
Emission

Infrared(880nm)

Output

PNP or NPN

Relay SPDT
Output Characteristics

NO or NC

3A/30V AC, 1A
Max. Load Current

≤200mA

<2.5VA
No Load Current

30mA or Less

Voltage Drop(Sensor On)

<2.5V

-
Response Time

≤1ms

Short Circuit Protection

Yes

-
Electric Protections Yes -
Temperature Limits

-20 ~+70°℃

Storage temperature and humidity

-40 ~ +80℃ 95% RH

Light Immunity

>100,000Lux

Protection Degree

En60529 IP65

EMC

EN 12015, EN 12016

Certification CE
Connection Type

PVC Cable



Escalator Entrance Detection Device Escalator Entrance Detection System 0

Escalator Entrance Detection Device Escalator Entrance Detection System 1



Escalator Entrance Detection Device Escalator Entrance Detection System 2

Escalator Entrance Detection Device Escalator Entrance Detection System 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
