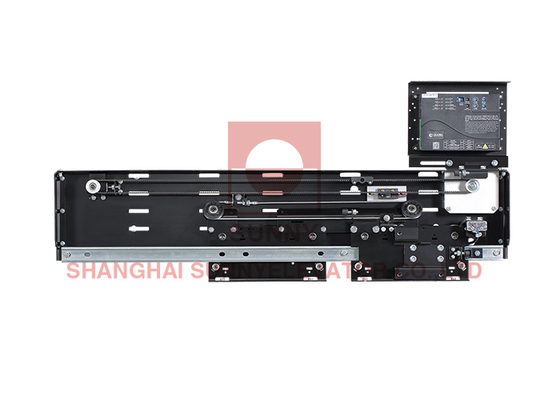

2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators

2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators
2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators
2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators

Großes Bild :  2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators

Produktdetails:
Place of Origin: China
Markenname: SUNNY
Zertifizierung: CE,ISO9001
Model Number: SN-OMJ-506A
Zahlung und Versand AGB:
Minimum Order Quantity: 1Set
Preis: $500~1200
Packaging Details: container
Delivery Time: 7~15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000pcs/month
Kontakt

2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators

Beschreibung
Name: 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator Product Name: 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator
JJ: 600~1200MM Used: Elevator Parts
System: Elevator control system Install: Car top installation
Transportation: Sea Delivery Applicable: Elevator Equipment
Model: 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator Type: 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator
Hervorheben:

2-leafs elevator door operator

,

permanent magnet synchronous door operator

,

side opening elevator door operator

2-Leafs Side Opening Permanent Magnet Synchronous Door Operator For Home Lifts
Product Specifications
Attribute Value
Name 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator
JJ 600~1200MM
Used Elevator Parts
System Elevator control system
Install Car top installation
Transportation Sea Delivery
Applicable Elevator Equipment
Model 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator
Type 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator
Key Features
  • High efficiency and energy saving: Uses permanent magnet synchronous motor for efficient driving, wide torque range and low running noise
  • Full-closed-loop control technology with high precision. Automatic generation of door opening/closing curves with one-key debugging
  • Equipped with car door lock for safety in non-level zones. Door hanger has safety hook to prevent collision/fall, passed 45kg soft pendulum test (GB/T7588.1/2 compliant)
  • Driven weight capacity ≤ 160kg for both landing door and car door
  • Standard I/O port with CAN communication port and data communication function for master control system
  • 70mm sill compatible, ideal for home lifts
Technical Specifications
JJ 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200
A1L 1000 1075 1150 1225 1300 1375 1450 1525 1600 1675 1750 1825 1900
A2L 175 200 225 250 275 300 325 350 375 400 425 450 475
A 150 175 200 225 250 275 300 325 350 375 400 425 450
2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators 0 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators 1 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators 2 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators 3 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator for Elevators 4
Frequently Asked Questions
Are the elevator wire ropes durable?
Elevator wire ropes have special provisions and requirements. The configuration considers not just the wire rope and rated load, but also the traction size. The tensile strength exceeds the lift weight with a safety factor of at least four ropes, preventing simultaneous breakage.
Is it dangerous during sudden power failure?
During power failure, the elevator automatically stops using electrical and mechanical safety devices. Brakes engage automatically, and power supply departments typically provide advance notice for planned outages.
Will users be hurt if doors close suddenly?
Doors automatically reopen when touched during closing. Anti-pinch switches prevent closure when obstructed, and closing force is carefully regulated for safety.
How does the elevator operate?
Elevators operate via counterweight wire ropes through traction drive, moving vertically along guide rails.
Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, making installation and commissioning simpler and more convenient.
Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE certifications for our products.
